Product Description

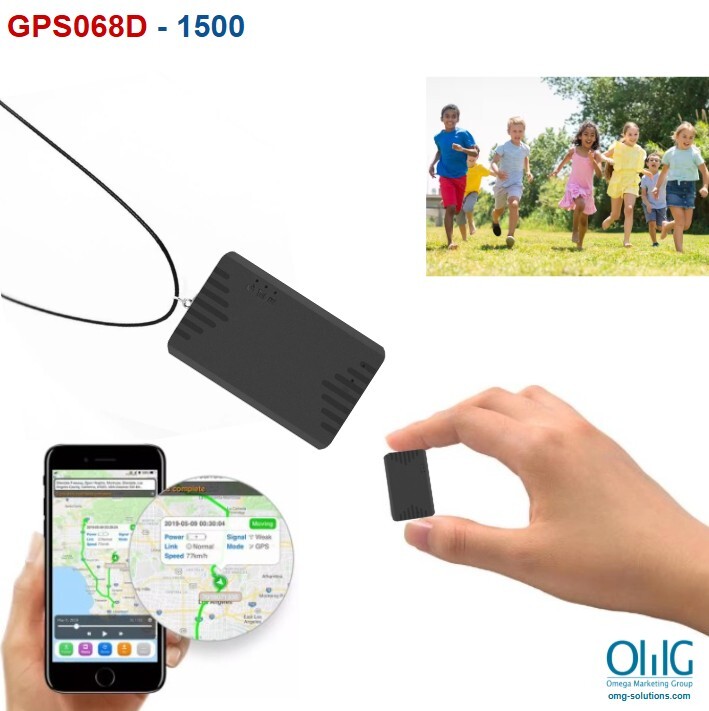

- Working based on 4G network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
- The most advanced technology of GPS, LBS, WIFI, Beidou positioning solution.
- The waterproof level at IPX – 65.
- Alarms: fence alarm, vibration alarm, overspeed alarm, Low battery alarm.
- Antenna types: built-in antenna.
- The power converter forms rechargeable batteries.
- Map function: Google.
Product Specification
- Dimension: 53*31*20mm
- Battery: Built-in 1500mah polymer battery
- Waterproof: IPX – 65
- Weight: 123g (including batteries)
- Network: 4G
- GPS chip: AT6558
- Channel: 56 channel all-in-view tracking
- GPS sensitivity: –162Db
- GPS frequency: L1, 1575.42 MHz
- C / A code: 1.023 MHz chip rate
- Channel: 56 channel all-in-view tracking
- Speed Accuracy: 0.1 m / s
- Time Accuracy: 1 microsecond synchronized satellite time
- Default data: WGS-84
- GPS accuracy: 10m, 2D RMS
- Time To First Fix: Reacquisition 0.1s Cold status 32s, Warm status 30s Hot status 1s
- Maximum height: 18000 meters (60000 feet) Max.
- Maximum speed: 515 meters/second (1000 knots) Max
- Maximum acceleration: less than 4 g
- The instant displacement: 20 m/SEC
- Battery: Chargeable 1500 mAh (3.7V) Li-ion battery
- LED Lights: 3 LED for charging status, GPS and GSM state
- Standby Time: 20 days
- Storage Temperature: -30°C to +80°C
- Operation Temperature: -20° C to 75° C
- Humidity: 10%–85% non-conden
