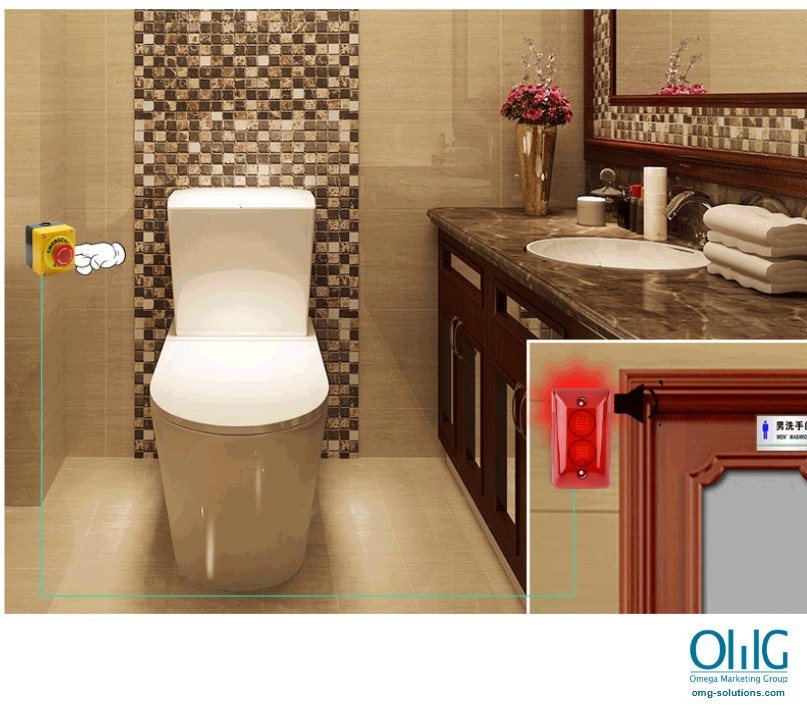

How it works

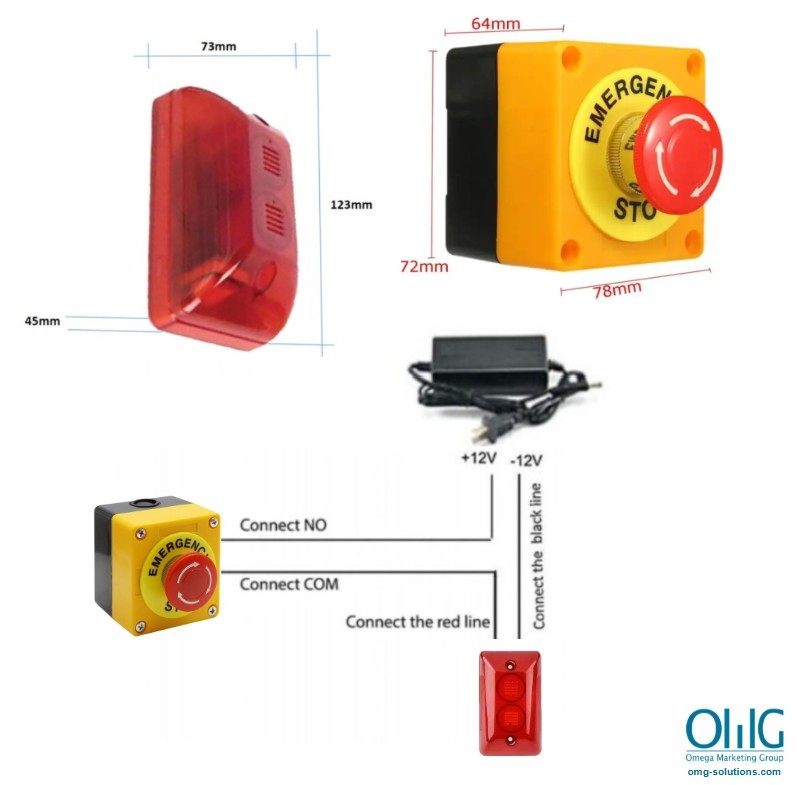

Siren Installation: The EA033C Alarm (Strobe Light Siren) should be installed outside the restroom, either directly next to or above the door.

Panic Button Placement: A panic/call button is installed inside the restroom or any other area where assistance might be needed.

Alarm Activation: Pressing the panic button triggers an immediate audible and visual alarm outside the restroom area.

Deactivating the Alarm: The alarm can be easily silenced by twisting/turning the push button to reset it.

Caller Assurance: The audio indicator inside the restroom will emit a continuous, reassuring beep to let the caller know that help has been summoned.

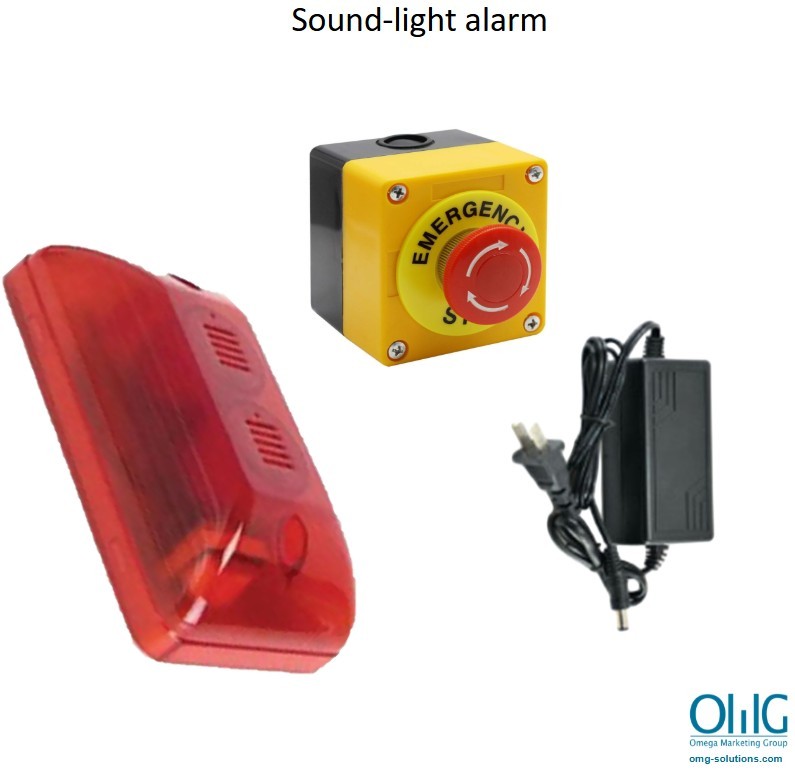

Product Description

1 x Emergency Push Button
1 x Power Adapter

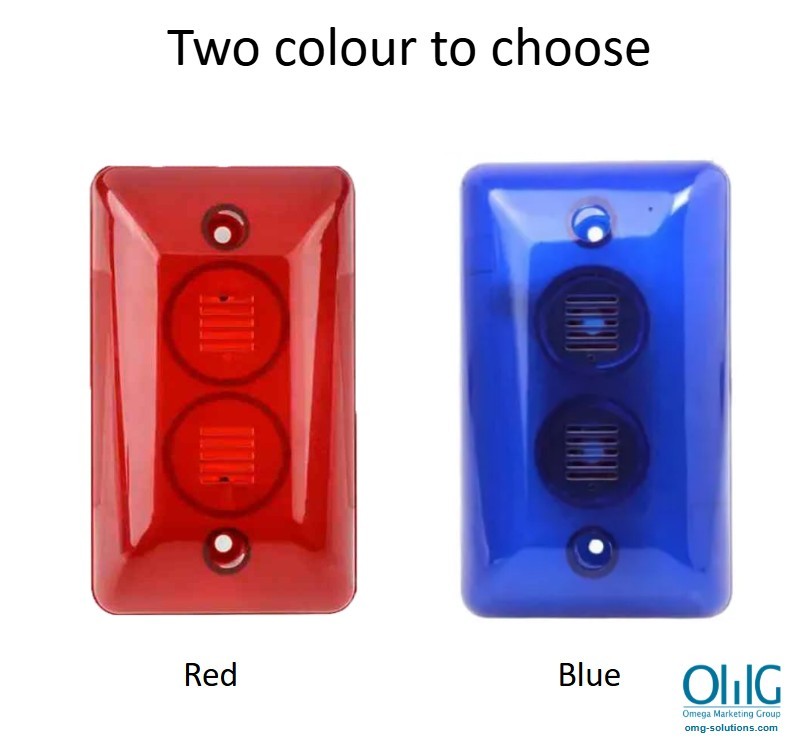

1 x Strobe Light Siren  (Audio & Visual)

Specification for Push button

Size: 78*72*91 mm
Colour: Red, Yellow, Orange, Black
Material: Plastic, Metal
LED: No
Button Diameter: 40 mm
Mount Hole Diameter: 5 mm
Fit Panel Thickness: 32 mm
Contact Resistance: 30 mOhm
Insulation Resistance: 1000 MOhm
Insulation Intensity: 2000 VAC
Operating Temperature: -20-55 Celsius
IP Rating: IP65
