CONFIGURATION
Base Configuration
Main Chip: MTK MT6769 12nm 8-core processor 2.0G high speed low power processor
Operating System: Android™12 Intelligent operating system
Lens Module: Front FF camera: OV4689 FOV:164 degree，
F-25 Front camera: Sony 13M”
Memory: 32GB Standard
Display / Touch Screen: 2.8 inch IPS screen480 (RGB) * 640，
Narrow border + ON CELL multi-touch screen
Horn: 2613,2W Waterproof speaker
Microphone: Dual-Microphone, With active noise reduction
Auxiliary light source: 4 infrared lights, 2 white light, 1 laser light
Light sensor: Standard configuration for controlling automatic on and off of infrared light
Motion sensor: Acceleration sensor (standard), gyroscope support 6 axis.
Storage card: Built-in TF card, up to 256GB
WIFI: Support 802.11b/gprotocol，2.4GHz+5GHz
Bluetooth/NFC: NO
Positioning: Built-in GLONASS/GPS Combined positioning + AGPS, Support BEIDOU/Galileo
Interface: TYPE-C USB2.0
Function parameter
Video resolution: Max 2K (2560 * 1440) 30FPS
Photo size: 4M，8M，16M，32M，48M，54M
Infrared night vision: Infrared light can cover 70% of the effective area within a viewing angle of 3 meters, and the viewing distance is 15 meters
Video function: Support 10-second pre-recording, support video capture
Camera function: Support continuous shooting, automatic white balance, 4x digital zoom
Distortion correction: 20%(Optional lens)
Native playback: Support local playback, can adjust the progress bar to play through touch screen
Focus mark: Marks documents recorded by the equipment
Overlay information: Equipment serial number + device information, year, month, day, hour, minute, second location information, Battery
Battery: Replaceable and rechargeable high-voltage battery.
Charging method: Adapter PC-USB auxiliary charging / car USB with fast charging function,5V / 2A charging
Built in battery: Built-in 75mAh small battery, 3 minutes of continuous power when replacing the battery
Shooting time: Single battery flight mode recording has a range of 11 hours, and single battery image transmission is greater than 7 hours
Energy-saving mode: Automatically turn off the screen and enter power saving mode within 5 minutes
Structure appearance
Appearance craft: Two-color mold process, soft rubber keys, with limit button

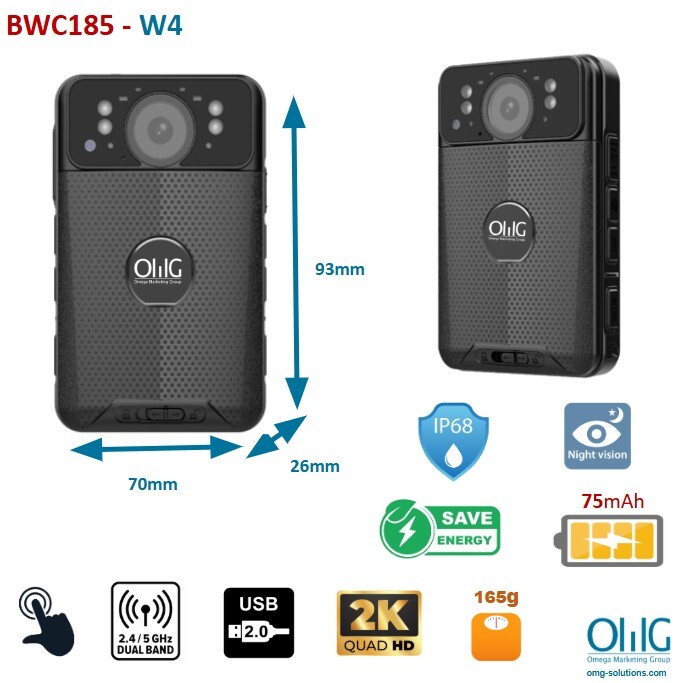

Appearance specifications: Size: 93mm*26mm*70mm, Weight: 165g
Protection class: IP68, Cumulative drop 30 times on any 6 sides within 2 meters without damage
working environment: Temperature: -30~ 70°C， Relative humidity: 40% ~ 80%
Storage environment: Temperature: -40~70°C， Relative humidity: 93% (40°C)
